6V to 12V Converter Circuit Diagram

This inverter circuit can provide up to 800mA of 12V power from a 6V supply. For example, you could run 12V car accessories in a 6V (British?) car. The circuit is simple, about 75% efficient and quite useful. By changing just a few components, you can also modify it for different voltages.

Notes

L1 is a custom inductor wound with about 80 turns of 0.5mm magnet wire around a toroidal core with a 40mm outside diameter.

Different values of D3 can be used to get different output voltages from about 0.6V to around 30V. Note that at higher voltages the circuit might not perform as well and may not produce as much current. You may also need to use a larger C3 for higher voltages and/or higher currents.

You can use a larger value for C3 to provide better filtering.

The circuit will require about 2A from the 6V supply to provide the full 800mA at 12V.

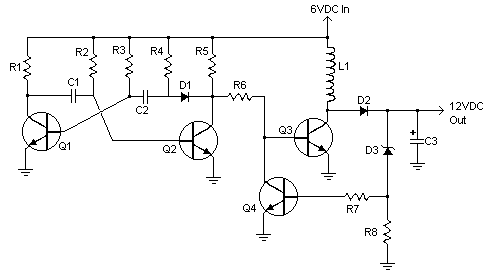

6V to 12V Converter Circuit Diagram



Parts

R1, R4 2 2.2K 1/4W Resistor

R2, R3 2 4.7K 1/4W Resistor

R5 1 1K 1/4W Resistor

R6 1 1.5K 1/4W Resistor

R7 1 33K 1/4W Resistor

R8 1 10K 1/4W Resistor

C1,C2 2 0.1uF Ceramic Disc Capacitor

C3 1 470uF 25V Electrolytic Capcitor

D1 1 1N914 Diode

D2 1 1N4004 Diode

D3 1 12V 400mW Zener Diode

Q1, Q2, Q4 3 BC547 NPN Transistor

Q3 1 BD679 NPN Transistor

L1 1 See Notes

MISC 1 Heatsink For Q3, Binding Posts (For Input/Output), Wire, Board
